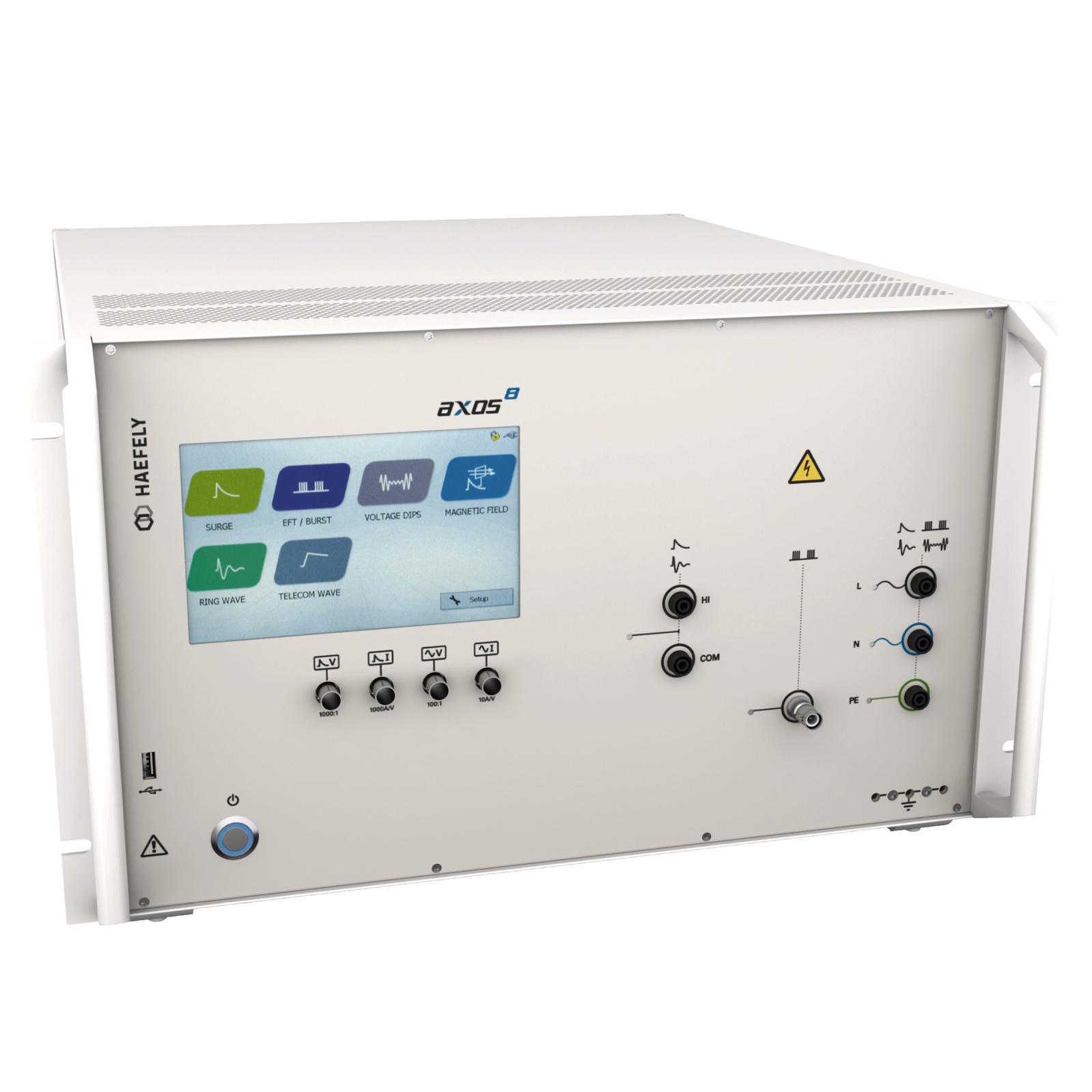

AXOS 8 - Compact

The new AXOS 8 - Compact integrates all of the best features of our stand alone test systems into one single economic solution. It is capable of 5 kV EFT/Burst, 7 kV Combination Wave (1.2/50 us & 8/20 us), 7 kV Ring Wave, AC/DC Dips & Interrupts (requires the DIP 116), Pulsed Magnetic Field (requires the MSURGE-A), and Telecom Wave (Requires the TW 8)

The unit also includes an integrated single-phase coupling decoupling network (CDN) for EMC testing applications up to 16 A.The expandable functionality allows for quick and completely automated testing to the most common IEC, EN, ANSI, IEEE and UL standards. The AXOS unit can either be operated via front panel by large color graphic interface or remotely from the PC. The easy to use menu together with the availability of predefined test routines for different standards makes testing easy and reliable, even for less frequently users. Numerous additional functions such as external start/stop function allows easy integration of the test system also in customer specific test environments.

Applications

• Compliance and pre-compliance testing of electrical products
• CE marking
• Product development and debugging
• Compliance testing of telecom and wireless devices
