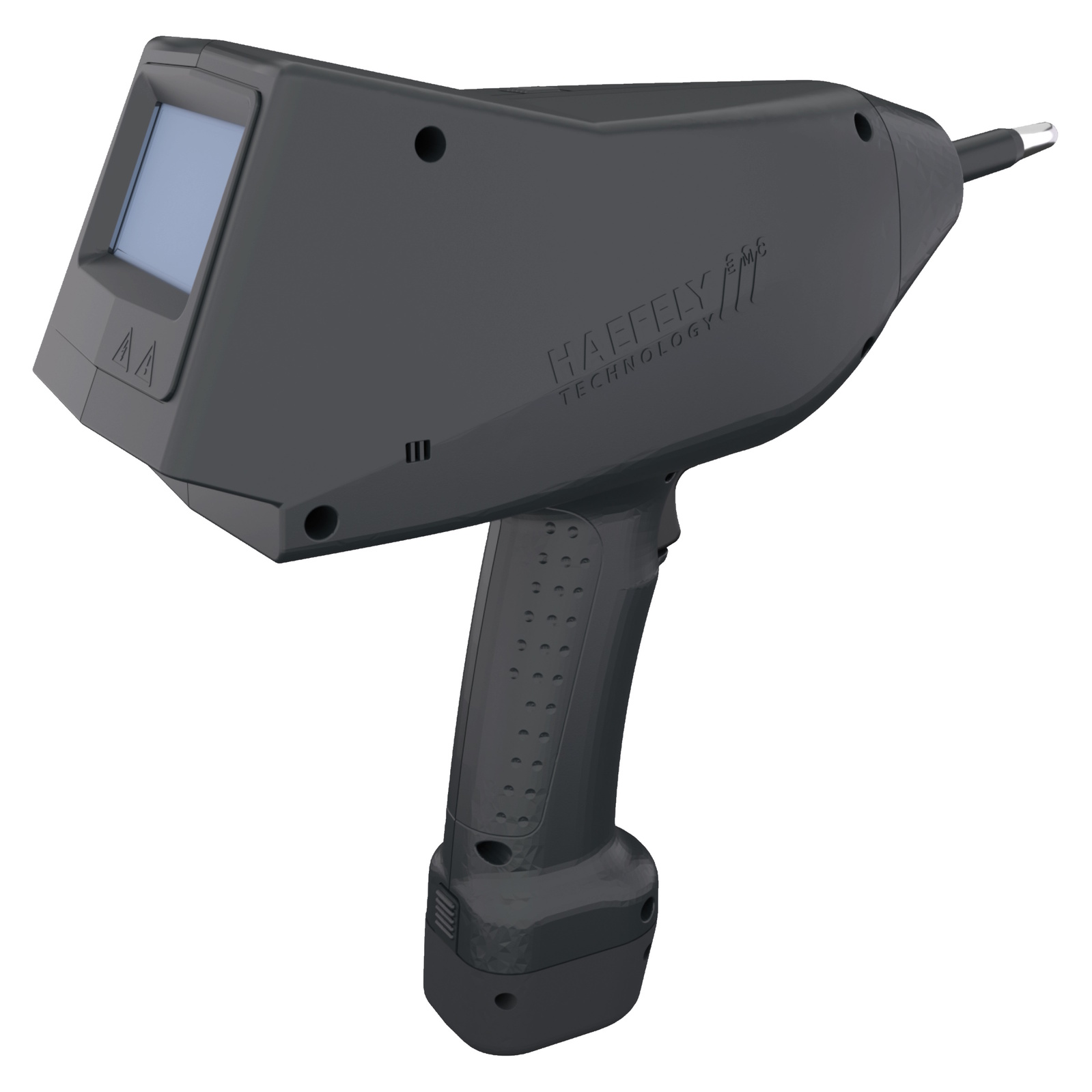

ONYX 16

The ONYX is a state of the art electrostatic discharge test system available in 16 kV or 30 kV versions. The ONYX 16 is the most ergonomic 16 kV ESD gun without an additional base control unit that can be battery or mains operated.

The easy to use touch screen, ergonomic design, modular RC units, multilingual interface, remote control software, built-in LED light and temperature & humidity display allows for trouble-free use of the ONYX in all types of test sites.

Applications

• IEC/EN 61000-4-2
• IEC/EN 61326
• IEC/EN 61000-6-1 & -6-2
• IEC 61340-3-1
• IEC/EN 60601-1
• ISO 10605
• GMW 3097
• Ford AB/AC
• ANSI C63.16
• PSA B21 7110
• ISO 14304
• ITU-T K.20
• MIL-STD-331 / -464 / -883 / -1512 /-1514 / -1541 / -1542
• RTCA/DO-160
• JEDEC 22-A114
• GR-78-CORE
• GR-1089-CORE
• and others
