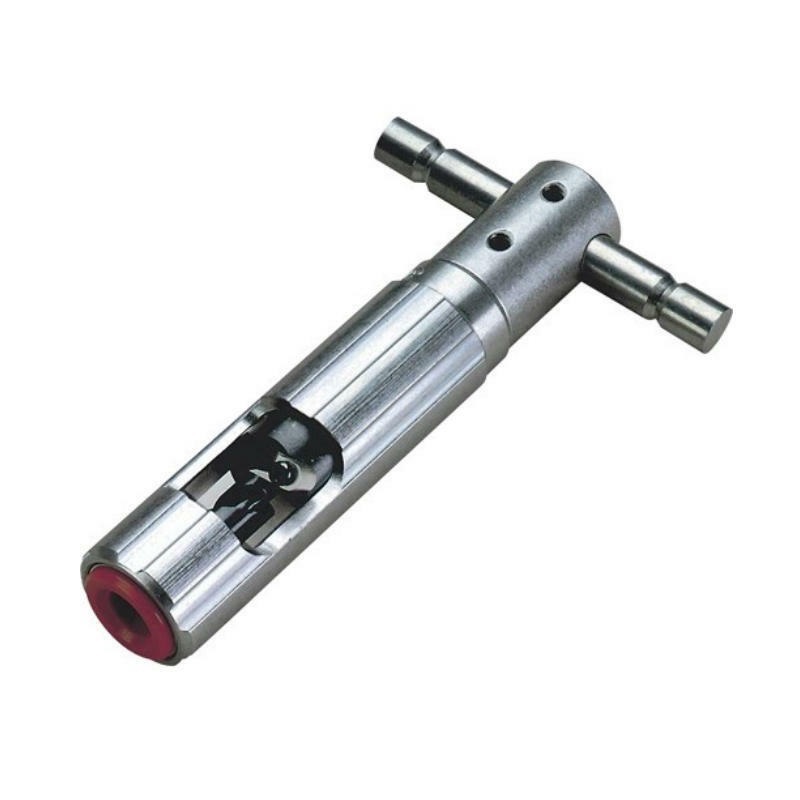

The CST-series is designed for both manual and drill operation for easy coring & stripping in 1 easy tool. The CST body features a standard "T" handle for hand use, and a built-in 3/8" drill adapter. It also features a heat treated, sheath cutting blade that produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit.

  • Combination tool cores and strips in one fast and precise operation
  • Manual or drill operation; CST tools have a standard “T” handle with a built-in 3/8 in. (9.5 mm) drill adapter; CST-R tools have a ratchet “T” handle and a separate 3/8 in. (9.5 mm) drill adapter
  • Heat treated sheath cutting blade produces a smooth beveled edge and can be replaced without the expense of replacing the entire coring bit
  • Spiral-fluted, heat-treated steel coring bit
  • Rugged, durable, all-metal construction
  • Strip stops available for exact stripping lengths of 0.50 to 2.00 in. (12.7 to 50.8 mm)
  • Color coded cable guide sleeves for easy cable size identification
  • Use of CC-100 or CC-200 Center Conductor Cleaner/Scraper removes residual dielectric which remains on the conductor after coring and stripping
  • Made in the U.S.A.
  • Length: 6.88 in. (175 mm)
  • Weight: 13 oz (369 g)

(CST500)

This product will be free from defects in material and manufacture for a period of one year from the date of purchase.
SKU CST500
Model # CST500
Brand Ripley Cablematic
Shipping Weight 0.4500kg
Shipping Width 0.080m
Shipping Height 0.005m
Shipping Length 0.050m
12 Months Return to Base Warranty
