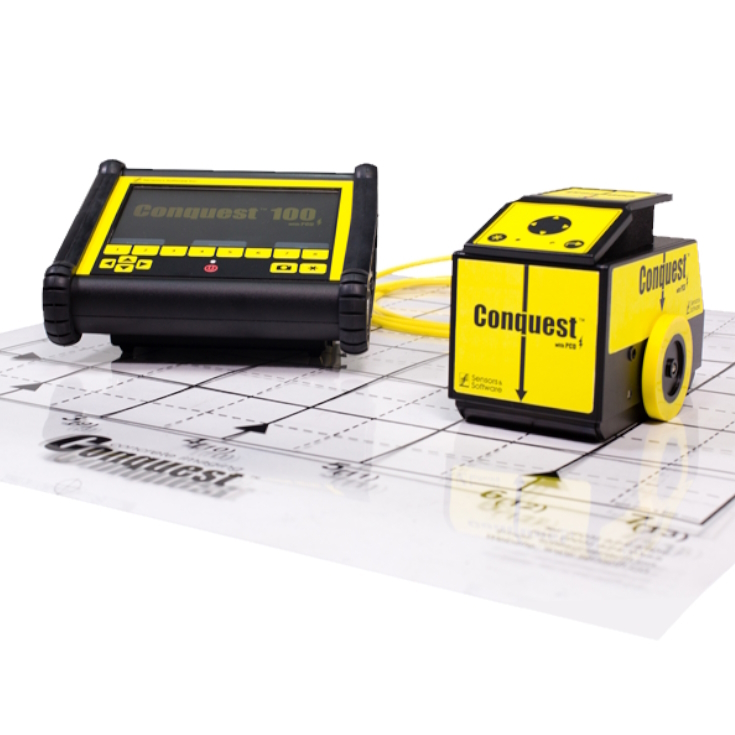

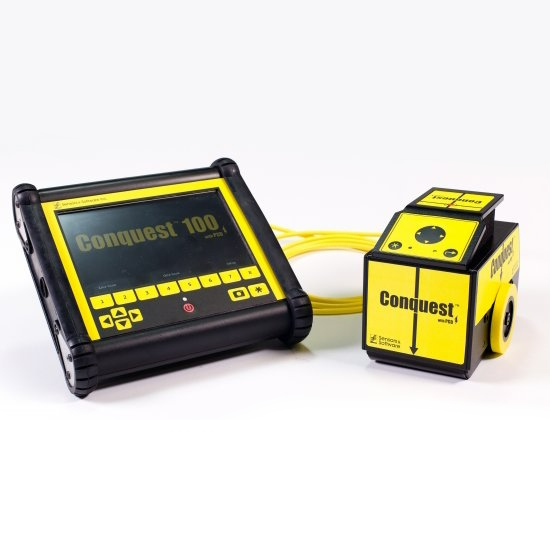

Conquest 100 GPR

Concrete scanning with GPR made simple

Cutting, coring or inspecting concrete structures? Need to avoid dangerous and costly hits? Looking for post-tension cables, conduits, rebar or live power cables? If so, then CONQUEST 100 is the right GPR for you!

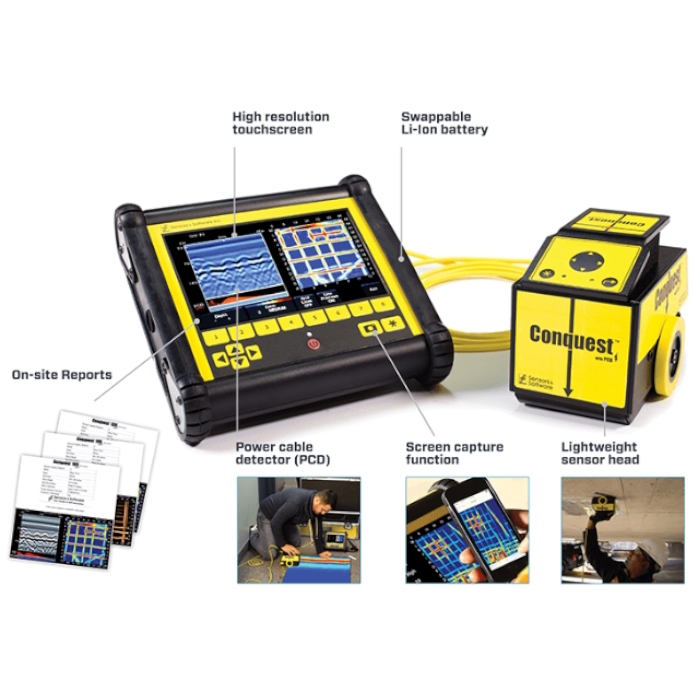

Key Features:

• High visibility touch screen display unit
• On-site Reports
• USB Data Transfer
• Built in Wi-Fi
• Li-Ion battery
• Ultra Wideband GPR Sensor
• 2 Wheel Odometer

CONQUEST 100 reduces risk:

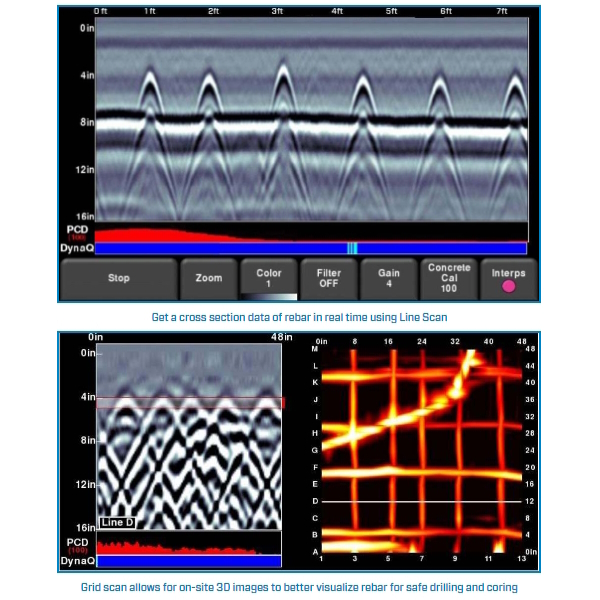

• Locate rebar, post-tension cables, metallic and non-metallic conduits embedded in concrete.
• Create detailed maps of concrete floors, decks, columns, walls and ceilings to detect embedded objects before cutting or coring.
• Detect voids beneath slab-on-grade/concrete.
• Locate and map current-carrying wires using Power Cable Detector (PCD) technology.

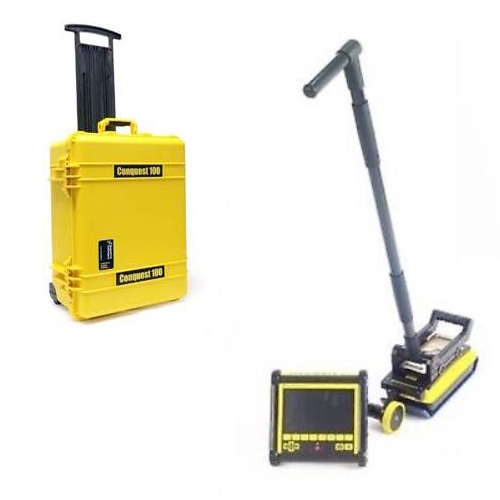

Increase comfort and versatility with the optional Deluxe Mobility Kit:

• Long reach resizable handle
• Conquest 100 Trigger with Bluetooth® wireless technology
• Carrying harness
• Extra battery pack
• Desktop charger
• Additional cable

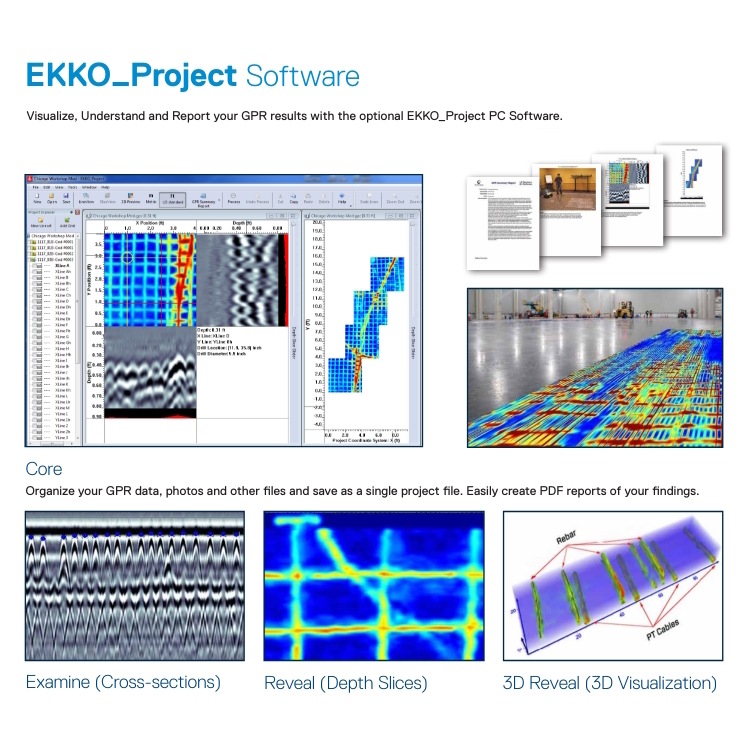

Visualize, Understand and Report your GPR results with the optional EKKO_Project PC Software. EKKO_Project Software Sold Seperatly.

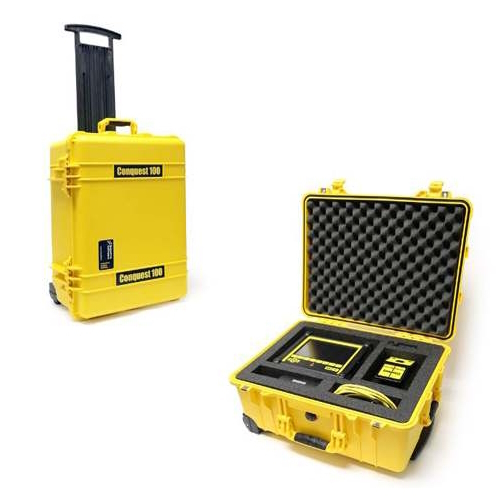

What comes with this kit?

Conquest 100 Enhanced System

Consists of:

• Conquest 100 System
• Embedded Software - Conquest 100 Enhanced



Conquest 100 Deluxe Mobility Kit

Consists of:

• Conquest 100 Bluetooth Trigger
• Conquest Transducer Cable (1.75 m)
• Deluxe DVL-500 Carry Harness
• Battery Pack (RRC2020)
• Conquest 100 Charging Station
• Conquest Collapsible Handle Fork Section
• Conquest Collapsible Handle Centre Section
• Conquest Collapsible Handle End Section

.

The LMX150 Findar Ground Penetrating Radar (GPR) Unit is ideal for detecting shallow utilities and situations where higher resolution is more important than depth. Due to its smaller size, it is particularly useful in cases where space is limited and when greater resolution is required in the topmost 1 to 3 meters of the ground. As a result, it is commonly used as a pavement or shallow/small utility solution GPR.


Sensors and Software LMX150 FINDAR Forensics & Utility GPR Unit

Originally designed as a forensic based tool for investigators, the LMX150 has also been proven to be a great Utility GPR for locating shallower objects up to 3 Meters (500MHz Antenna Frequency)




LMX150 FINDAR:

• Finds utilities (metallic and non-metallic) up to 3 m
• Grid Scan Mode
• Map View
• Interpretations
• Supports External GPS
• Grows with your business. Upgrades available
• Store and organize your data in 9 Projects containing 99 Lines and 9 Grids each
• Data export for post processing in EKKO_Project Software (Add-on)
• EKKO Project Software is required for the LMX150



Full Range of EKKO_Project software available (Sold Separately)




The LMX150 and LMX200 comes pre-installed with an Enhanced Software Package used for viewing results on the GPR screen only. If you download the results onto a USB drive and then try to download the results onto a computer for reporting purposes, you will then be required to purchase one of the EKKO_Project V6 Software options to view and report on the results.




EKKO_Project Software Options:

• EKKO_PROJECT V6 Core
• EKKO_PROJECT V6 Examine
• EKKO_PROJECT V6 Reveal
• EKKO_PROJECT V6 3D Reveal
• EKKO_PROJECT V6 Suite
• EKKO_PROJECT V6 3D Suite



A Link to these Ekko_Project Softwares is linked in the ORANGE box below:




Please note: The LMX200 requires EKKO Project Software EKKO_PROJECT SOFTWARE




A full range of EKKO_Project software is available for the LMX150 and LMX200 GPR systems.




EKKO Project Software






Why should you use EKKO_Project?

• Ekko_Project helps to streamline project workflow and increase data processing efficiency.
• A variety of outputs depending on your client’s needs.
• Easily archive all work performed, including photos, for insurance purposes.
• Provide higher quality service to your customers.
• Generate additional revenue from selling reports/outputs to clients.
• Differentiate your service by delivering outputs that your competitors do not.
• Set data delivery standards that your competitors cannot match.
• The cost of software usually pays for itself in a short time.
