The Tempo Spike Markers come in a box of 50

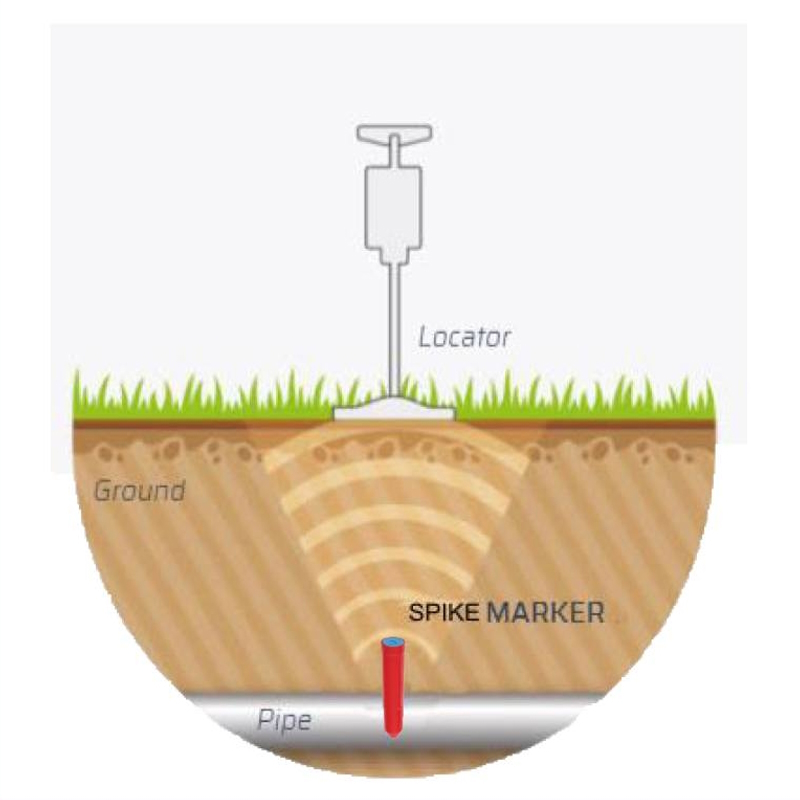

Spike Markers are designed to pinpoint objects buried in soil to at least 1M deep, and at least 600MM if the Spike Marker is on its side in the ground. Particularly useful with utilities, distribution ducts and similar applications such as cable TV drops, fiber drops, traffic light control cables, or power, gas, and district heating lines to properties. The smaller size and diameter of the Spike Marker are ideal for shallow, narrow ducts where the Tempo OmniMarker II is impractical. Being compact, the Spike Marker is also ideal for placing alongside or inside smaller enclosures enabling easy relocation when they become over grown.

Made of high-density polyethylene, the Spike Marker has a lifetime comparable to the equipment they are buried alongside. Spike Markers are compatible with virtually all marker locators, including the EML-100 from Tempo, and are available with all industry-standard frequencies and colour combinations.

KEY BENEFITS

COMPACT

• Less than 20mm diameter and 89mm length.
• Ideal for shallow and narrow ducts where the Omni Marker II cannot fit.
• Marking utilities after installation is easier and faster using Spike Markers instead of Omni Markers.

RELIABLE

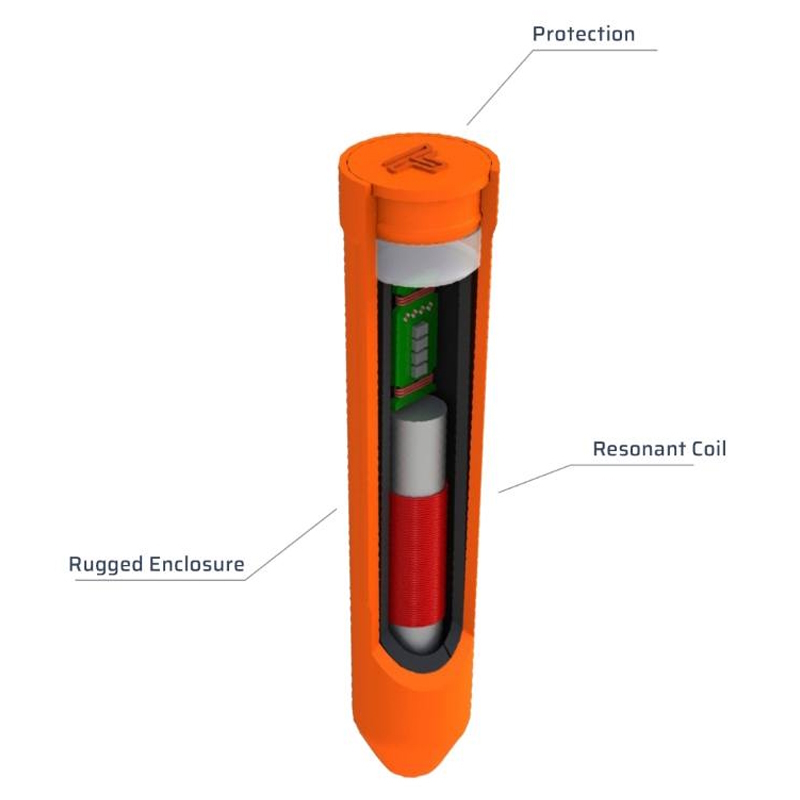

• Impermeable to water and resistance to acids, alkalis and solvents with outer case made of highdensity polyethylene (HDPE)
• Compatible with EML-100 and all other industry standard marker locators

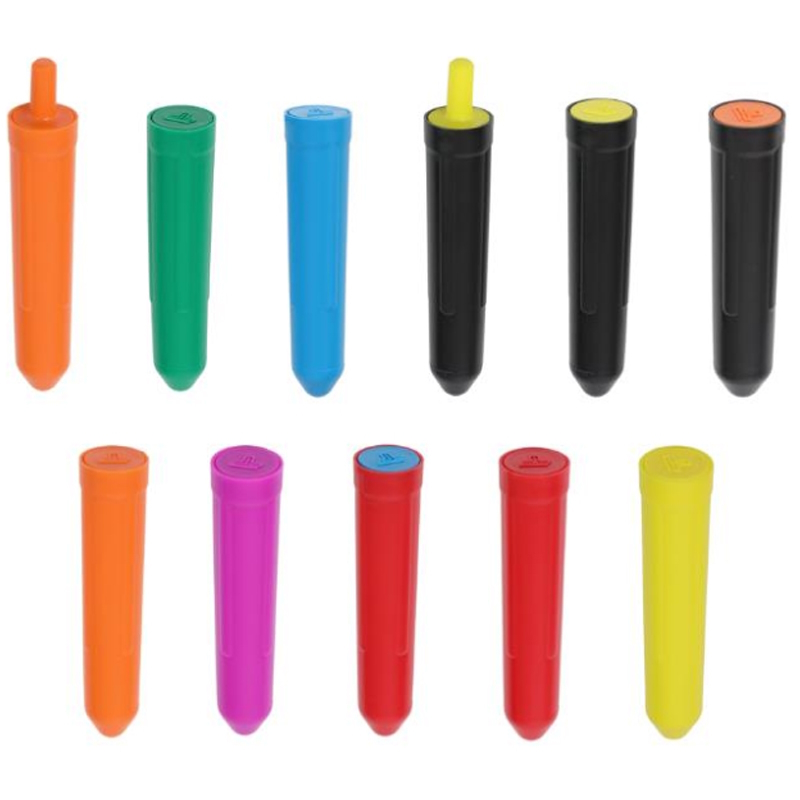

• Available in all industry standard colors and frequencies

VERSATILE

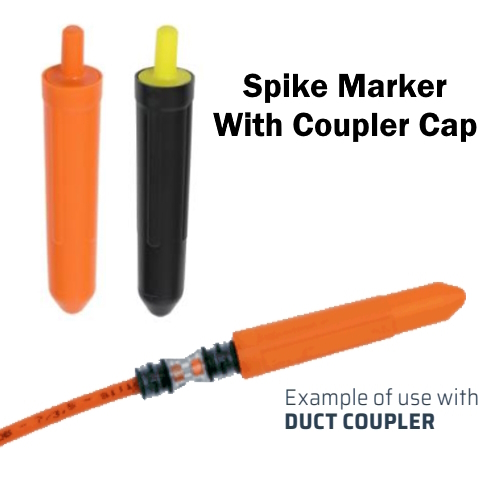

• Telephone and Fiber versions available with 7mm diameter coupler nose to allow direct application to “dead ends” of fiber micro-ducts and similar.

Save hours of unnecessary digging and reduce costly utility strikes by marking the location of underground utilities with Spike Marker by Tempo.

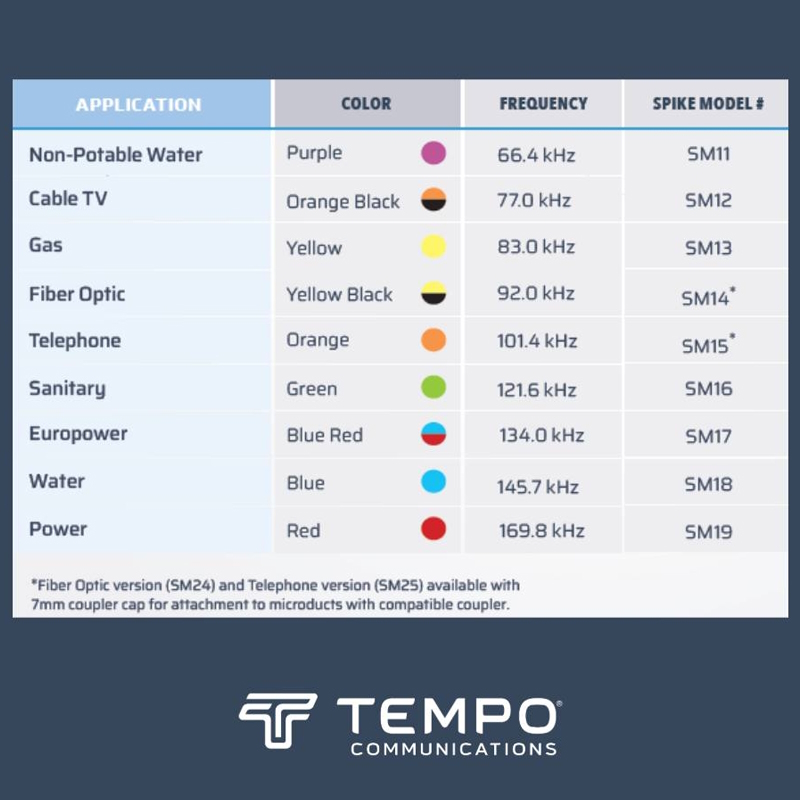

Spike Markers. Box of 50:

• SM11 Purple Non-Potable Water, 66.4 kHz
• SM12 Orange & Black Cable TV, 77.0 kHz
• SM13 Yellow Gas, 83.0 kHz
• SM14 Yellow & Black Fiber Optic, 92.0 kHz
• SM15 Orange Telephone, 101.4 kHz
• SM16 Green Sanitary, 121.6 kHz
• SM18 Blue Water, 145.7 kHz
• SM19 Red Power, 169.8 kHz
